MyPropertiesCAD
Additional properties for any object in CAD displayed in the Properties panel
|
|

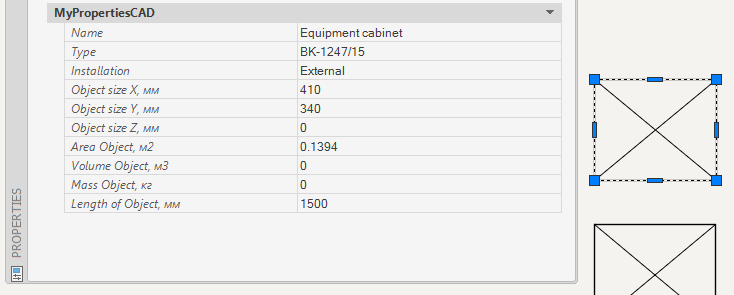

MyPropertiesCAD - CAD add-on for displaying additional properties of any object in the Properties panel.
This is a unique program that you really need.
The program really helps to quickly determine the name or other parameter of any object in the drawing.
Once you start using the program, you will definitely say - why didn't I use this before!
Main functions:
- creation of any additional properties of objects at the user's request;
- display of overall dimensions of one and multiple objects;
- display of parameters for selected (multiple) objects - Length, Area, Volume, Mass;
- display of total parameters for multiple objects - Length, Area, Volume, Mass;
- calculation and display of the mass of a 3D body from the specified density;
- display of parameters from the dimension and the name of the dimension.
Functions:
- creating a table of all or selected objects;
- selecting the name and number of table columns;
- summing up the values in the table.
Full version of AutoCAD and other CAD.
Attention !!! In AutoCAD LT - the program does not work !!!
|
•Current version:
Version 1.4
•Release date:
06.11.2024
System requirements:
Microsoft® Windows® 7 - 10
.NET Framework 4.6 or later
Full version of AutoCAD and other CAD.
Attention !!! In AutoCAD LT - the program does not work !!!
